How to Mount a Phone on a Boat: Console, Windshield, and No-Drill Options That Survive Spray and Chop
Every car phone mount you have ever owned will die on a boat.
Not might. Will. The vent clip has no vent to clip to. The adhesive pad lets go the first hot afternoon on the water. The press-on suction cup survives the idle out of the marina & then launches your phone across the deck at the first wake.
Boats are a different problem. Constant vibration, chop, salt spray, direct sun for eight hours, & a console made of curved fiberglass that nobody wants to drill. A boat phone holder has to solve all of that at once. Here's how.
Why Car Mounts Fail on Boats
Chop
A car sees a pothole now & then. A boat at 30 mph in a two-foot chop sees a pothole every second
Spray & corrosion
Salt gets into zinc hardware, plastic clamps & cheap springs & eats them
UV & heat
Gelcoat & glass get hot enough to soften adhesive & the rubber on press-on cups
No vents, no flat surfaces
Consoles are curved & textured, & the windshield is often tempered glass in an aluminum frame
Nowhere to hide
The phone has to be visible at the helm & reachable without letting go of the wheel
Where to Mount a Phone on a Boat: Locations Compared
| Location | Drill? | Vibration | Spray exposure | Best for |
|---|---|---|---|---|
| Console / dash (vacuum cup) | No | Low | Medium | Any boat with a smooth gelcoat or glass surface. Removable |
| Console / dash (bolted AMPS base) | Yes, 2 or 4 holes | Lowest | Medium | Boats you own, permanent helm setup |
| Windshield glass (vacuum cup) | No | Low | Low | Center consoles & runabouts with a glass screen |
| Windshield frame / rail clamp | No | Medium | High | Pontoons, T-tops, aluminum boats |
| Helm pod / electronics pod | Yes | Lowest | Low | Boats with a pod already installed |
| Cup holder insert | No | High | Low | Phones you don't need to see while running |
For most owners the console is the answer. It's where you're looking anyway, it is usually the smoothest surface on the boat, & it keeps the phone under the windshield's protection.
Windshield glass is the next best spot if the console is too curved or too crowded. Rail & frame clamps are fine for pontoons & T-tops but take more spray & more vibration.
No-Drill vs Bolt-On
This is the choice that stops most boat owners, so here is the honest version.
Strongest mount there is
A 2-Bolt or 4-Bolt AMPS base through the console with stainless hardware & a dab of marine sealant will never move & never corrode.
The cost is two or four holes in gelcoat, which is permanent & is why people hesitate.
No-drill used to mean "weak." It doesn't anymore.
A mechanical vacuum cup is not a press-on suction cup. You seat it on a clean, smooth surface & throw a lever that pumps the air out from underneath.

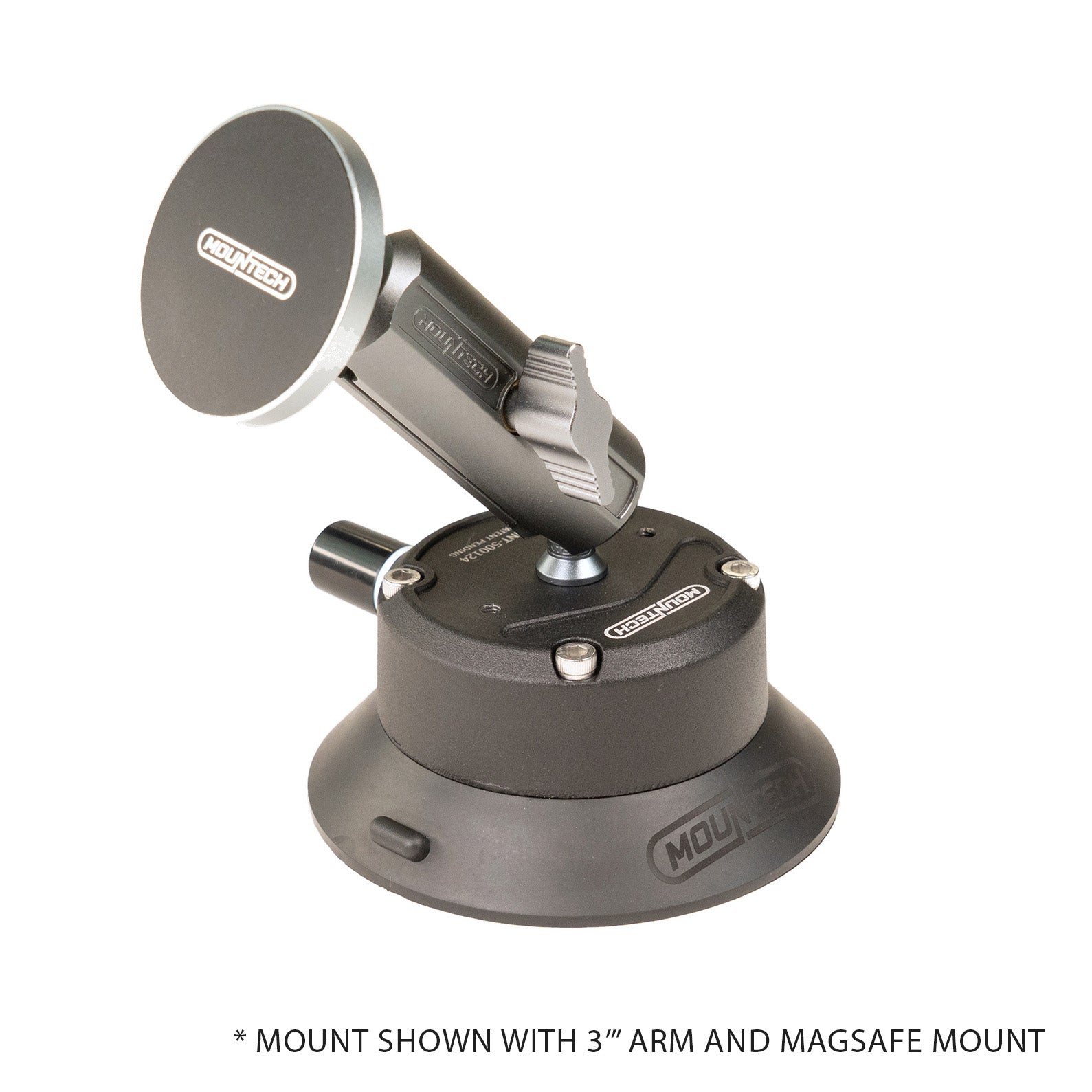

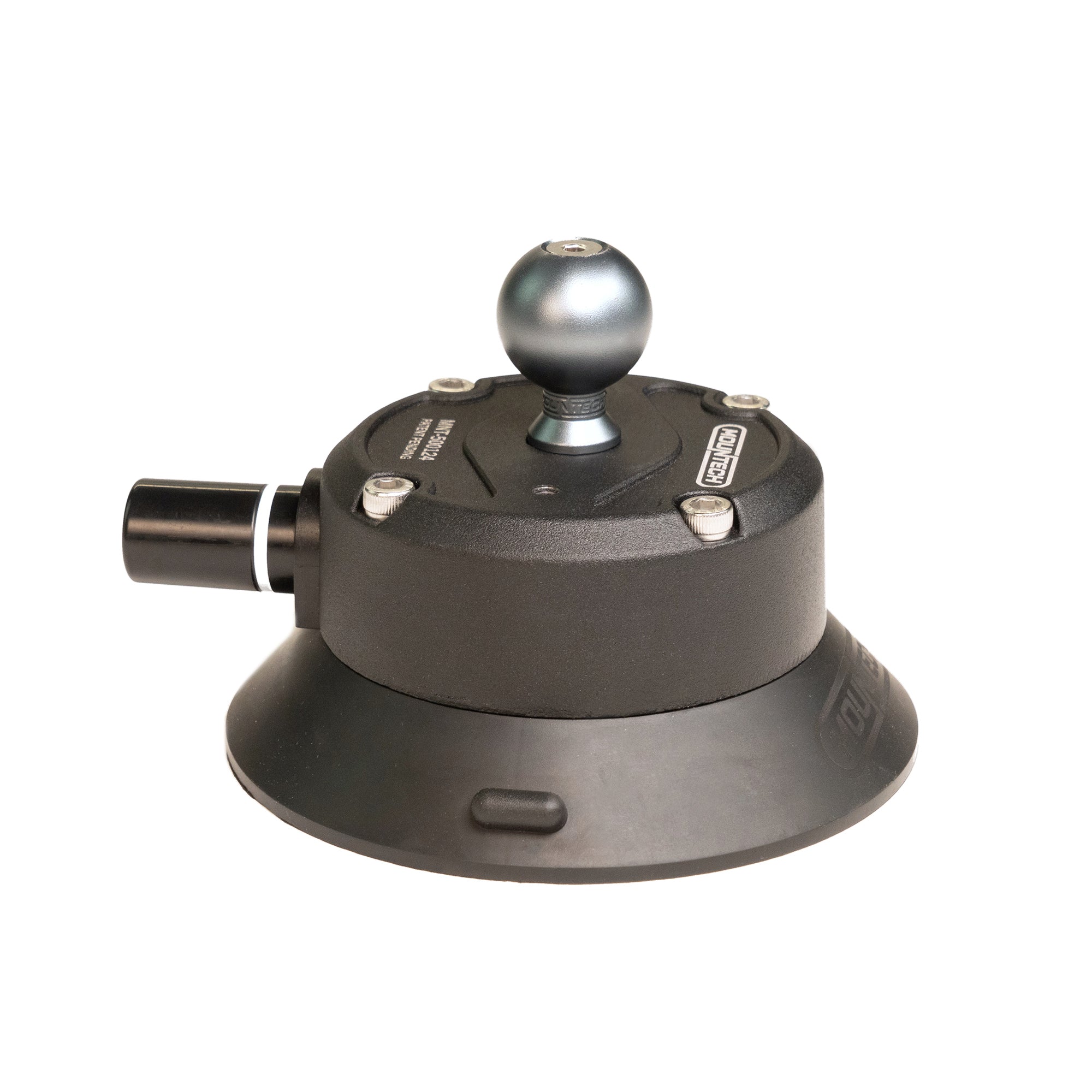

The Heavy Duty Vacuum Cup Mount is a 4.5-inch die-cast aluminum cup rated for a 120-pound straight pull, on gelcoat, glass, or smooth fiberglass. It holds at speed, it comes off without a mark, & it moves to the next boat.
Our honest recommendation: bolt-on if you own the boat & know exactly where the phone lives. Vacuum for everyone else, including owners who aren't sure yet, anyone on a leased or borrowed boat, & anyone who runs a tablet in summer & a phone in winter.
Hold Strength Compared
| Mount type | Holds at speed? | Survives spray? | Removable? |
|---|---|---|---|
| Adhesive pad | Until it gets hot | No | Leaves residue |
| Press-on suction cup | No | No | Yes, usually on its own |
| Mechanical vacuum cup | Yes | Yes (rinse & re-seat) | Yes, clean |
| Bolted AMPS base | Yes | Yes, with stainless hardware | No |
Choosing the Holder: Waterproof Case + Cradle vs MagSafe
The mount is only half of it. The holder has to deal with spray & a case.
Most boaters run a waterproof or rugged case, which rules out thin magnetic pucks. A spring-loaded cradle grips the phone through nearly any case up to 3.25 inches wide & does not care if the back is wet. It is the right call for bass boats, offshore & anything that gets a lot of spray.
A MagSafe holder is the better experience on a calm-water cruiser or pontoon where you're grabbing the phone constantly. MagSafe-compatible waterproof cases exist; just make sure yours actually has the magnet ring.
Step by Step: Vacuum Mount on a Fiberglass Console
- Pick a spot that is smooth, flat enough to seat the full 4.5-inch cup, & within reach from the wheel. Avoid textured non-skid & anything with a seam
- Clean the surface with fresh water & dry it completely. Salt film is the number one reason a cup won't seal
- Press the cup down & throw the vacuum lever until it locks. You should feel it pull tight
- Clamp a short or medium arm onto the ball, then your holder
- Load the phone into a holder, angle it toward the helm, & tighten the arm knob until the SpinLok locks the ball
After a day out, or if the cup ever feels less than rock solid, release the lever, wipe the cup & the surface, & re-seat. Ten seconds. On a boat that lives in the water, do it at the start of every trip.
Maintenance: Salt, Seals & Hardware
Rinse the mount with fresh water when you rinse the boat. Salt crust on the rubber seal is what shortens a vacuum cup's life.
Store the vacuum cup out of the sun when the boat is put away. UV is the only thing that eventually gets to the rubber.
Every Mountech component is anodized or powder-coated aluminum with stainless hardware. That is not a marketing line here; zinc-plated bolts on a boat turn to orange dust in a season. If you bolt a base through the console, use the stainless hardware it ships with & a bead of marine sealant around the holes.
The four-hole base pattern is the same AMPS standard used in trucks, so any AMPS holder or plate you already own bolts to it.
Quick Answers
Will a vacuum phone mount hold at 40 mph?
Yes, on a clean, smooth surface. The cup is rated to 120 pounds of straight pull; a phone & arm are under a pound. Re-seat it before each trip & it stays put in chop.
What is the best phone holder for a pontoon boat?
A vacuum cup on the helm console or windshield, with a MagSafe holder if the water is calm. Rail clamps work but take more spray.
Bass boat vs center console: any difference?
Bass boats run faster & rougher, so use the spring cradle & the shortest arm you can. Center consoles usually have glass, which is the easiest surface of all for the vacuum cup.
Can it hold a tablet for charts?
Yes. Any 1-inch ball tablet holder fits the arm (our tablet guide covers picking one). Keep tablets to about 10 inches on a vacuum mount, or go bolt-on for anything bigger that lives at the helm.
Want the story behind the vacuum cup? We covered why we built it after years of telling people not to buy suction mounts in this post.
