Jeep Wrangler & Gladiator Phone Mount Guide: JK vs JL vs JT, and Dash vs Grab-Handle vs Windshield
Jeeps eat phone mounts.
Doors off, top down, 35s humming on the highway, a dash that sits bolt upright with almost nothing to clip to. The vent mount that lasted three years in your daily driver lasts three weeks in a Wrangler. The windshield suction cup you bought at the gas station is on the floor by the second trail.
So the question isn't really "what's the best Jeep phone mount." It's "what works in my Jeep, on my generation, in the spot I actually want it." That's what this guide is for.
Why Jeeps Are Hard on Phone Mounts
A few things stack up against you.
Vibration
Solid axles, aggressive tires & a short wheelbase put more shake into the dash than almost any other vehicle on the road
Open air
Doors off & top down means wind load on the phone & the mount, plus dust & rain on everything
The dash itself
It is nearly vertical, the vents are small & round, & the flat surfaces are textured plastic that adhesive hates
Heat
A black dash under an open top in July will cook a press-on suction cup loose in an afternoon
Everything in our Jeep collection does one or the other.
Know Your Generation: JK vs JL vs JT
This is the part page one skips, & it matters more than the brand of mount you buy. The dash changed with every generation, so a mount built for one Jeep often doesn't fit the next.
TJ Wrangler
Flat dash, big grab handle, small radio cutout
Vacuum mount (glass or dash panel)JK Wrangler
Rounded dash, passenger grab handle, small screen
Vacuum mount, or a JK-specific AMPS bracket + Mountech 4-bolt ball mountJL Wrangler
Upright dash with center screen & factory hardware above the stack
Jeep dash mount kit (bolt-on, no drilling)JT Gladiator
Same dash as the JL
Jeep dash mount kitJL / JT 2024+
Redesigned dash with the larger 12.3" screen
Vacuum mount (the 2018-2023 kit does not fit)If you own a 2018 to 2023 JL or a 2020 to 2023 Gladiator, you have the easiest path: a bolt-on dash mount that uses factory hardware. If you own a JK, a TJ, or a 2024+ Jeep, a no-drill vacuum mount is the answer right now, & it is a better answer than most people expect. More on both below.
Where to Mount a Phone in a Jeep Wrangler: Locations Compared
| Location | Drill? | Vibration | Doors-off friendly | Best for |
|---|---|---|---|---|
| Dash (bolt-on bracket) | No, factory bolts | Lowest | Yes | JL / JT daily & trail use |
| Passenger grab handle | No, clamps on | Medium | Yes | JK / TJ, passenger-side navigation |
| Windshield (vacuum cup) | No | Low | Yes | Any generation, rentals, 2024+ |
| Windshield (press-on suction) | No | High | Falls off | Nothing. Skip it |
| Vent clip | No | High | Blocks airflow | Not in a Jeep |
| Cup holder | No | High | Yes | Phones you don't need to see |
| A-pillar / sport bar clamp | No, clamps | Medium | Yes | GoPro or second device, not primary navigation |
Dash is king if your generation supports it. The bolt-on bracket puts the phone at eye level, out of the airbag path, & the bracket is steel, so nothing moves.
The grab handle is the classic JK spot & works well for a passenger running the map. For a driver it tends to sit too low & too far right.
The windshield is fine in a Jeep as long as the mount is a real vacuum cup & not a press-on. The JL windshield is nearly vertical, which actually helps: the phone hangs close to the glass instead of leaning out into the cab.
Choosing the Holder: MagSafe vs Spring Cradle for Trail Use
On pavement, MagSafe is the better daily experience & we've said as much. One-handed, instant, no clamps to fumble.

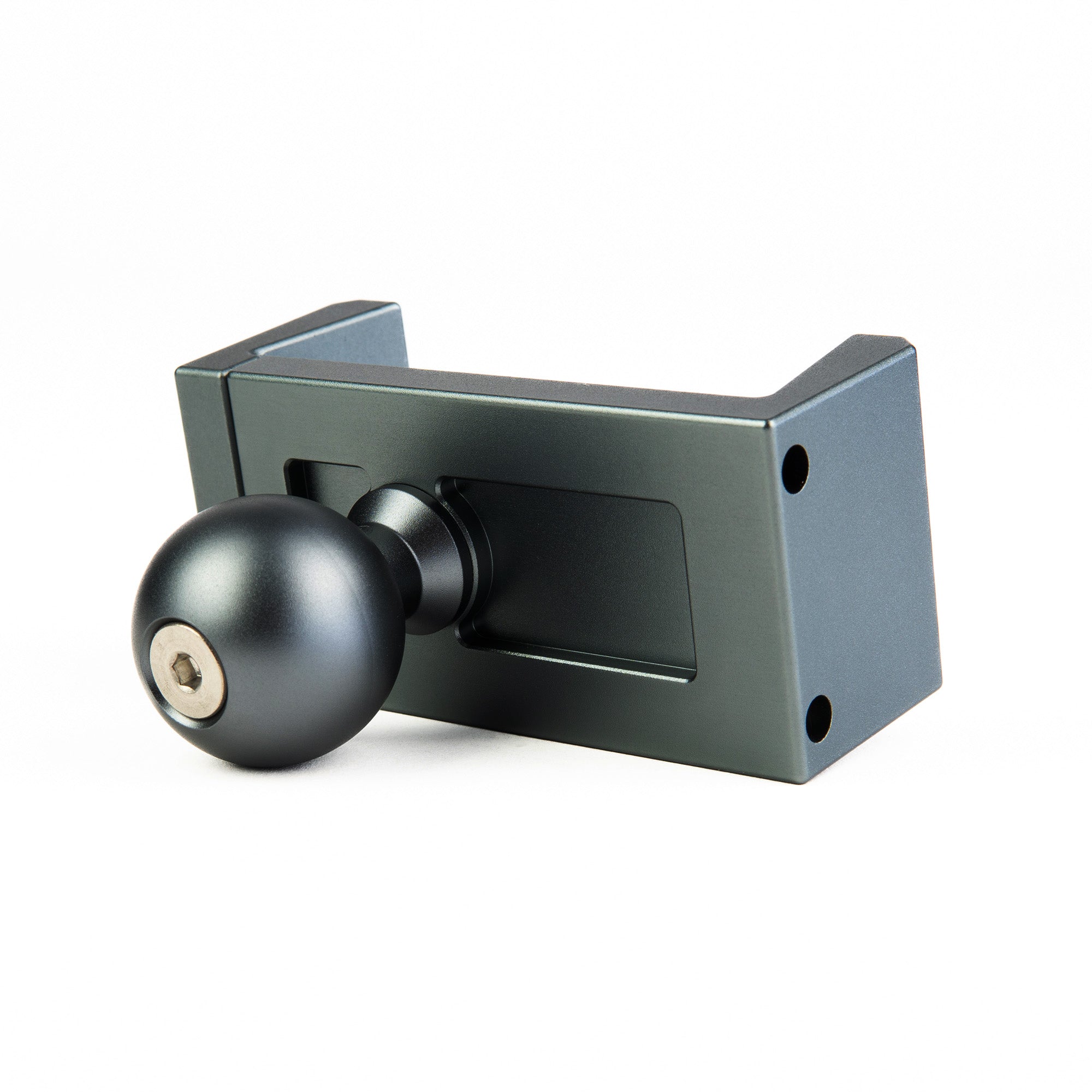

On a rocky trail with the doors off, the calculus shifts. A spring-loaded cradle physically captures the phone & doesn't care about a fat case or a wallet on the back. A MagSafe holder is plenty strong for washboard & moderate trails, but if you run a thick non-MagSafe case or you're bouncing through rock gardens, the cradle is the safer pick.

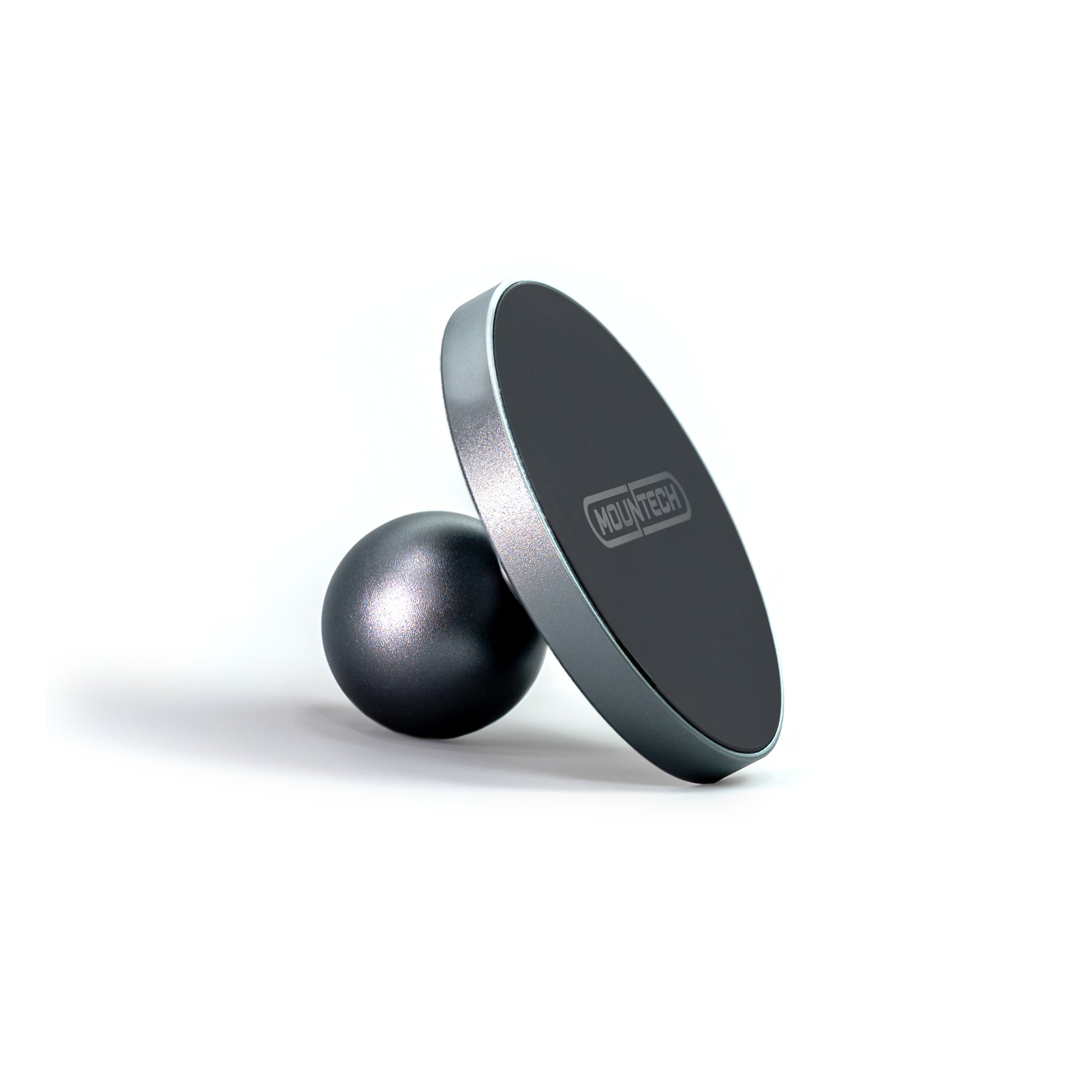

Either way, mind the weight. A large phone in a rugged case is pushing half a pound. Keep the arm short so the mount isn't fighting leverage on every hit. The Device Holders collection has all three options (spring, magnetic, magnetic wireless charging), & they all share the same 1-inch ball, so you can swap later without touching the mount.
Step by Step: Bolt-On Dash Mount in a JL or JT

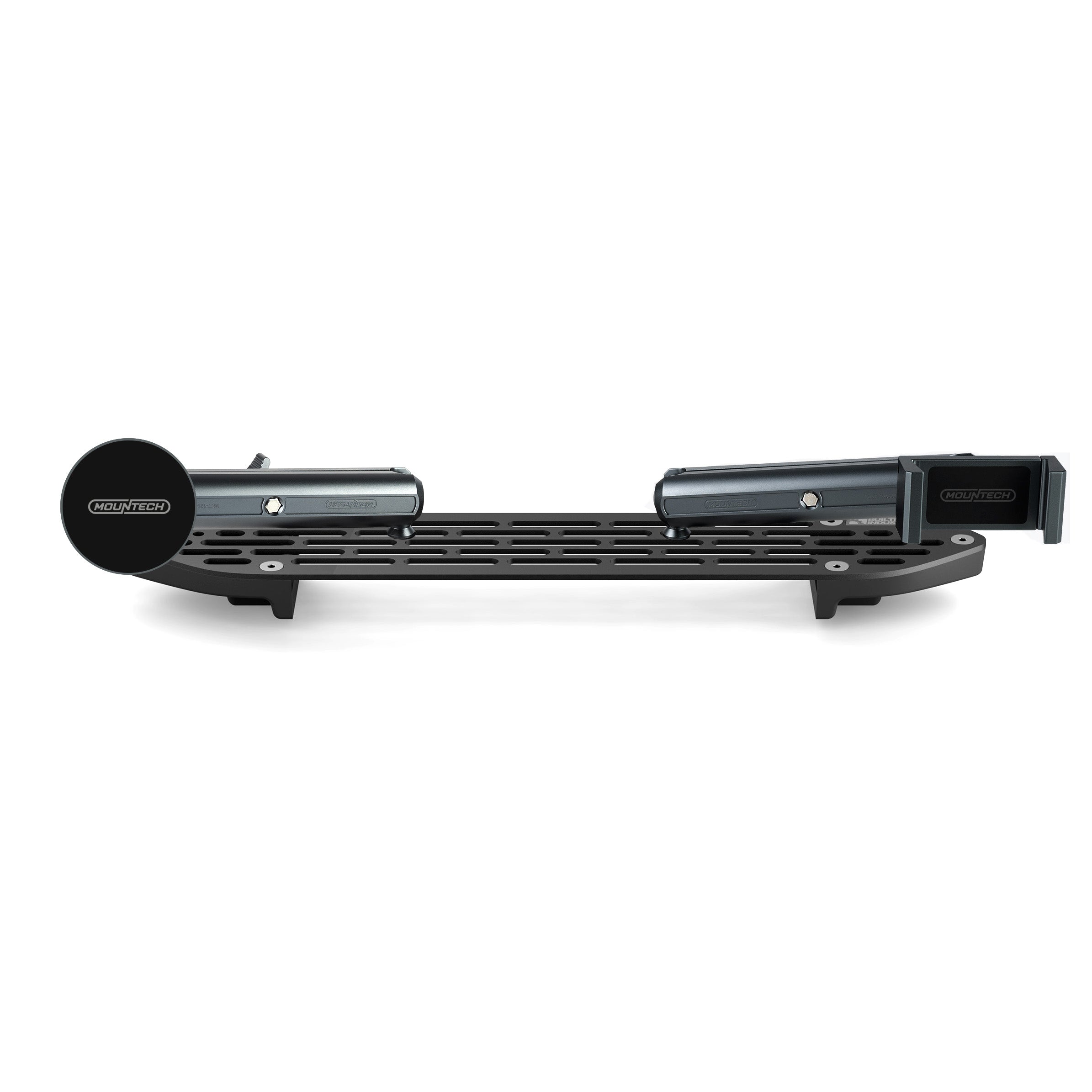

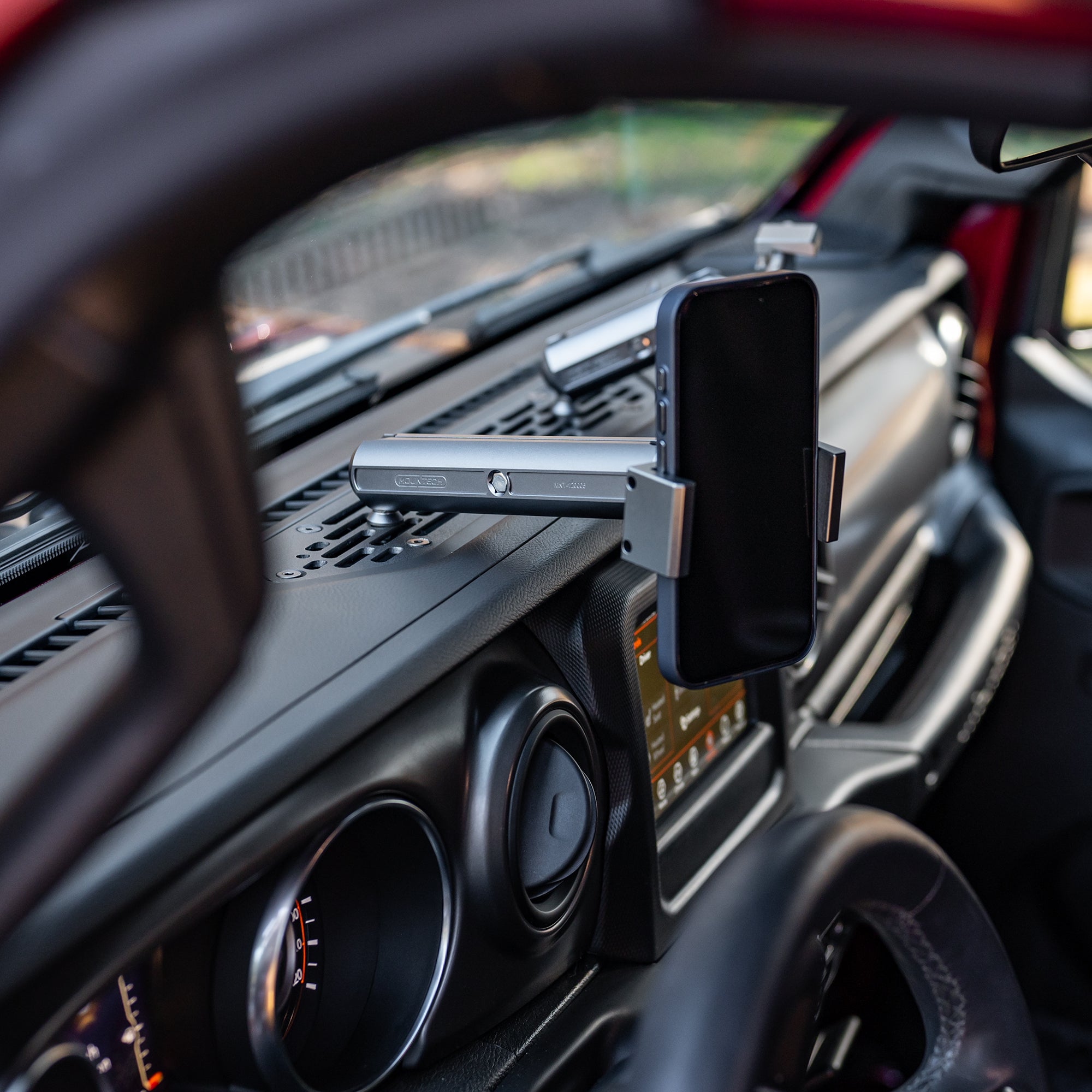

The Jeep Wrangler & Gladiator Dash Mount Kit pairs a BuiltRight dash bracket with Mountech's SpinLok ball mount, a short arm & your choice of holder. No drilling into the dash.
- Remove the factory hardware above the center stack per the BuiltRight video. Basic hand tools
- Set the dash bracket in place & reinstall the factory bolts through it. Torque snug, not gorilla

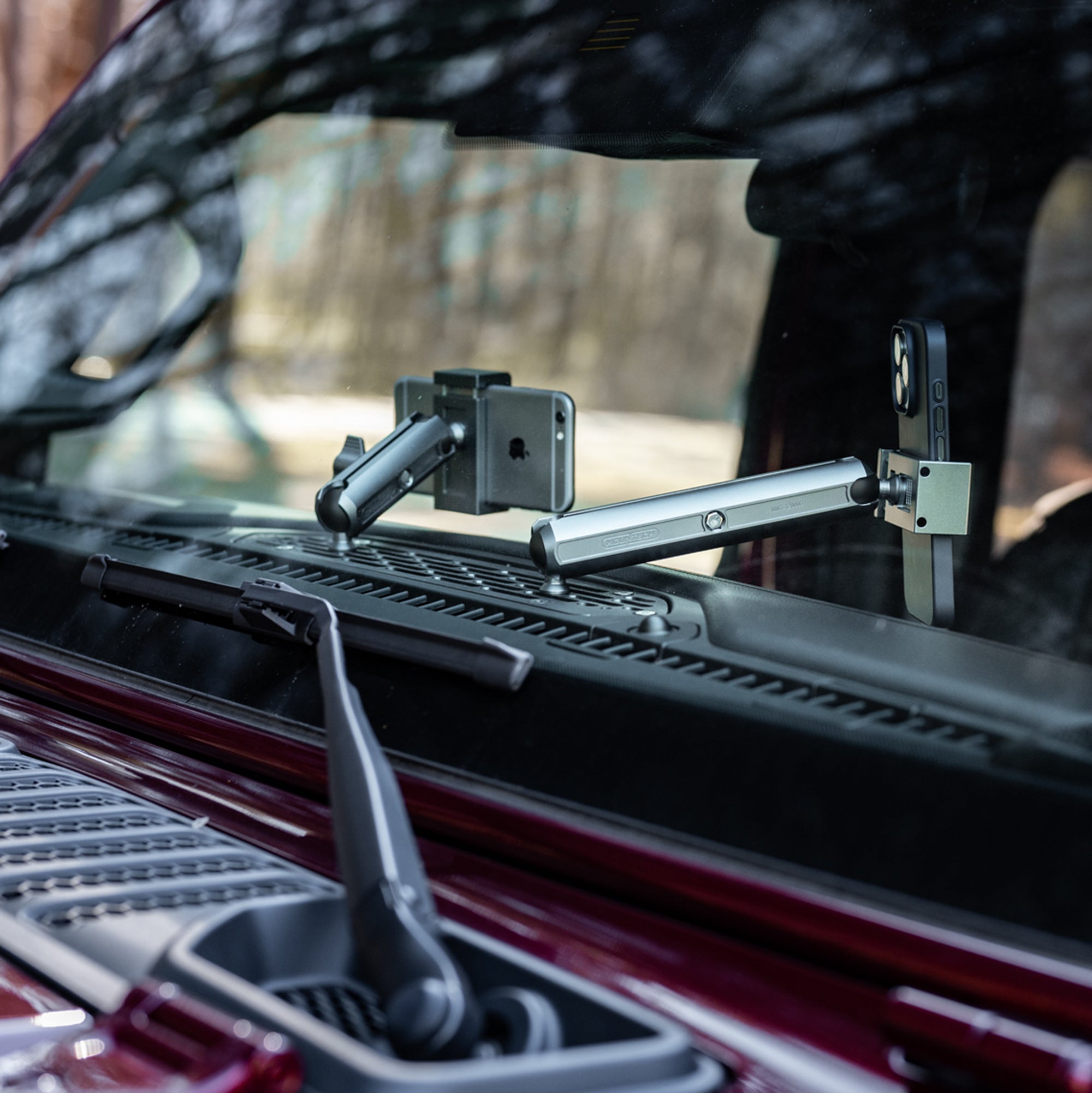

- Bolt the SpinLok ball mount to the bracket's AMPS slots. Slide it left or right for the sightline you want
- Clamp the short arm on, then the holder
- Angle the phone toward the driver, tighten the arm knob until the SpinLok locks, & go find a bumpy road to confirm nothing moves
Total time is about 20 minutes. The bracket is powder-coated steel that matches the dash, so it looks factory once the phone is on it, which is more than we can say for anything strapped to a grab handle.
Jeep Wrangler & Gladiator Dash Mount Kit
Fits JL 2018-2023 & JT 2020-2023. BuiltRight bracket, SpinLok ball, short arm, your choice of holder.
View the kitNo-Drill Options for JK, TJ, 2024+ & Rental Jeeps
If the kit doesn't fit your year, don't drill your dash. Use a vacuum mount.

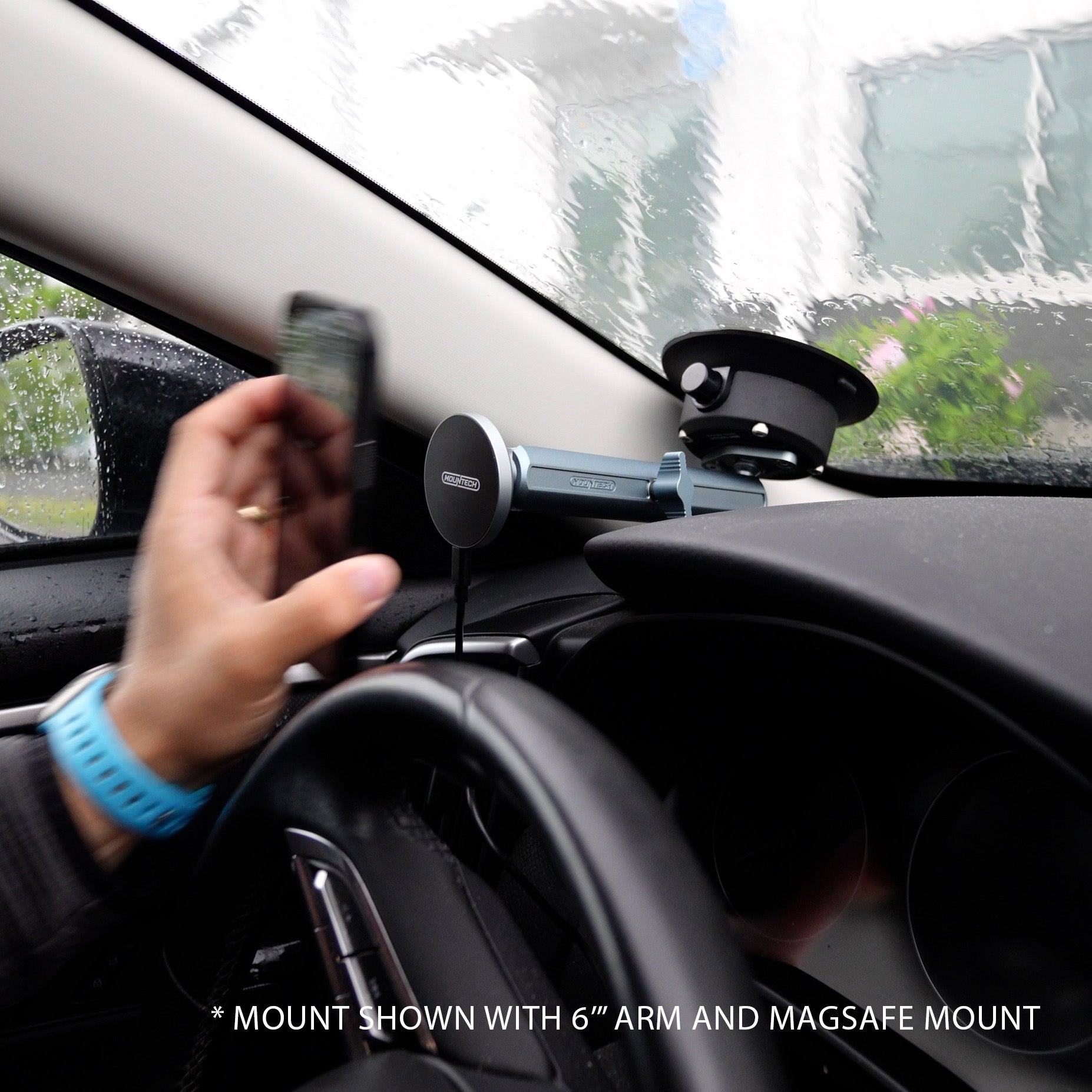

The Heavy Duty Vacuum Cup Mount is a 4.5-inch aluminum cup with a mechanical vacuum lever, rated to a 120-pound straight pull. It goes on the windshield or on a smooth section of the dash, pumps down in seconds, & comes off clean. It has a 1-inch ball on top, so the same arm & holder from the kit above bolt straight on.
Heavy Duty Vacuum Cup Mount
4.5" aluminum cup, mechanical vacuum lever, 120 lb straight pull, 1-inch ball on top. Fits any year.
View the vacuum mount
It is what we'd put in a JK today, & it's what we'd run in a 2024+ JL or Gladiator until there is a bolt-on bracket for that dash. We explained why it is nothing like the press-on cups in our vacuum mount post.
Quick Answers
Does a dash mount survive doors-off driving?
Yes, if it bolts to the vehicle & uses a locking ball. Wind load is the enemy of clip-on & press-on mounts, not bolted ones.
Does a Jeep phone mount block the airbag?
The bolt-on dash bracket sits above the center stack, outside the passenger airbag deployment zone. If you go windshield, keep the phone low & centered so it doesn't sit in the airbag's path or your sightline.
Will it hold a tablet?
The dash bracket will, with a 1-inch ball tablet holder & a medium arm. Our tablet-in-a-truck guide covers holders. Keep it to 10 inches or so in a Jeep; anything bigger blocks too much windshield.
Which phone mount fits a 2024 Wrangler?
The 2024+ dash is different, so the 2018-2023 kit doesn't fit. Use the vacuum mount for now.
Setting up a Jeep for the first time? The Getting Started guide covers the base-arm-holder system, & the F-150 post shows what the finished dash setup looks like in a truck.
